Exit release · narrow frame
Pushplate 110
A narrow exit release that mounts on the mullion of an aluminum storefront frame. Available with a standard microswitch or our pneumatic time delay.
Not sure this is the right model? Use the pushplate selector.
PUSH
TO
EXIT
Preview of your selection
Build your part number
Part number
Custom engraving is free. We’ll confirm your text or symbol with you before the plate is engraved.
Other colors and finishes are available on request.
Standard or time delay
| ST · standard switch | PNZ · pneumatic time delay | |
|---|---|---|
| Use it for | Request-to-exit, door operators, general control | The code-required manual release on maglocked doors |
| Switch | SPDT Form C microswitch, screw terminals | Time-delayed Form Z switch, wire leads |
| Time delay | None | 1–60 seconds, set with a needle valve (screwdriver or fingertip). No power needed. |
| Contact rating | 2.5 A @ 24 VDC · 15 A @ 480 VAC | 5 A @ 125 VAC |
| Listing | UL-recognized microswitch | UL508 / CSA C22.2 No. 14-10, MET Labs file E113051 |
| Warranty | 2 years | 1 year |
Built for heavy use
- The front plate’s travel, not the switch, takes the force of each press, so the switch lasts.
- Includes a stick-on drilling template that saves installation time.
- Tamper-resistant: Allen screws sit behind the front plate.
- Free custom engraving in your own text or symbols.
- Stainless steel back plate, anodized aluminum front plate.
- Designed and assembled in the USA from foreign and domestic components. Major components manufactured in-house.
Specifications
- Size
- 4.5″ H × 1.75″ W
- Mounting
- Narrow aluminum door frame (mullion)
- Button
- Full-plate rectangle
- Back plate
- Stainless steel
- Front plate
- Anodized aluminum

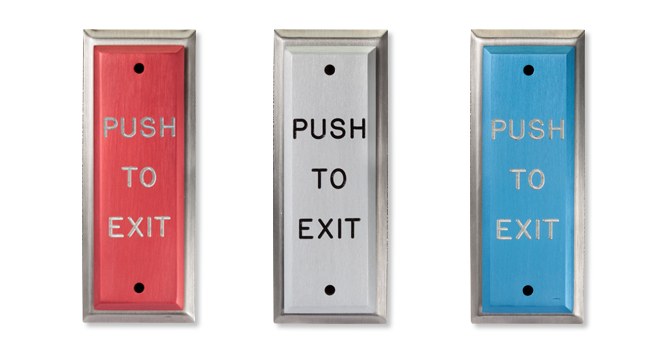

- Finishes
- Blue, red or brushed aluminum; others on request
- Part numbers
- H110-[finish]-[engraving]-[ST | PNZ]
