Maglock power supply
H512 Power Supply with Logic
A 12 VDC supply with the maglock logic built in. Land the egress devices on one terminal block and the H512 handles the code-compliant circuit, so there's nothing to design on site.
What it does

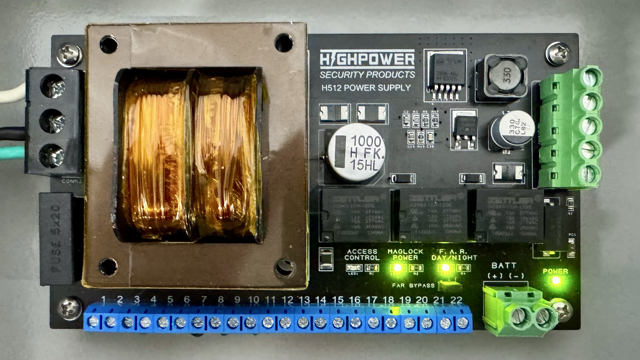

- NFPA 101 logic on board. A 22-position terminal block takes PUSH TO EXIT buttons, REX motion sensors, switched crash bars and an access control input.
- Fire alarm input. Connects to a normally open, held-closed fire alarm contact.
- Automatic door operators. Optional integration when an operator is used with a maglock, with inputs for operator push buttons.
- Day/night mode. By day, a press of the request button unlocks the door and opens the operator. By night, the access control system must authorize it first.
- LED status indicators help you debug the circuit and find a faulty accessory fast.
Specifications
- Output
- 12 VDC, up to 2 A, for maglocks and accessories
- Access control input
- Normally open
- Battery backup
- Lead-acid backup circuit, for jurisdictions that allow it
- Enclosure
- Standard 12″ × 12″ electrical box with knockouts for strain reliefs
- Power cord
- Optional factory-installed heavy-duty 3-prong cord with strain relief
- Origin
- Assembled in the USA with foreign components
