Exit release · single-gang
Pushplate 100
A heavy-duty exit release for a standard single-gang box. Choose a standard microswitch, or our pneumatic time delay that holds the door unlocked for 1–60 seconds with no external power.
Not sure this is the right model? Use the pushplate selector.
Build your part number
Custom engraving is free. We’ll confirm your text or symbol with you before the plate is engraved.
Other colors and finishes are available on request.
Standard or time delay
| ST · standard switch | PNZ · pneumatic time delay | |
|---|---|---|
| Use it for | Request-to-exit, door operators, general control | The code-required manual release on maglocked doors |
| Switch | SPDT Form C microswitch, screw terminals | Time-delayed Form Z switch, wire leads or terminal block |
| Time delay | None | 1–60 seconds, set with a needle valve (screwdriver or fingertip). No power needed. |
| Contact rating | 2.5 A @ 24 VDC · 15 A @ 480 VAC | 5 A @ 125 VAC |
| Listing | UL-recognized microswitch | UL508 / CSA C22.2 No. 14-10, MET Labs file E113051 |
| Warranty | 2 years | 1 year |
Built for heavy use
- The front plate’s travel, not the switch, takes the force of each press, so the switch lasts.
- Tamper-resistant: Allen screws sit behind the front plate.
- Free custom engraving in your own text or symbols.
- Stainless steel back plate, anodized aluminum front plate.
- Designed and assembled in the USA from foreign and domestic components. Major components manufactured in-house.
Specifications
- Size
- 4.5″ H × 2.75″ W
- Mounting
- Single-gang electrical box
- Button
- Full-plate rectangle
- Back plate
- Stainless steel
- Front plate
- Anodized aluminum
- Finishes

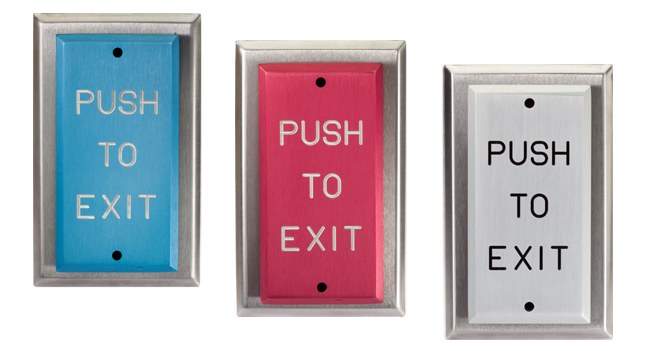

- Blue, red or brushed aluminum; others on request
- Part numbers
- H100-[finish]-[engraving]-[ST | PNZ]
