Mobile and smart card reader
CSR-35L mobile reader and CMC-2 credentials
Open the door with a phone or a card. The CSR-35L reads Apple Wallet and Google Wallet credentials, Bluetooth mobile credentials from up to 15 feet, and 13.56 MHz smart cards, all in one slim reader. Pair it with CMC-2 mobile credentials to put access on your users’ phones.

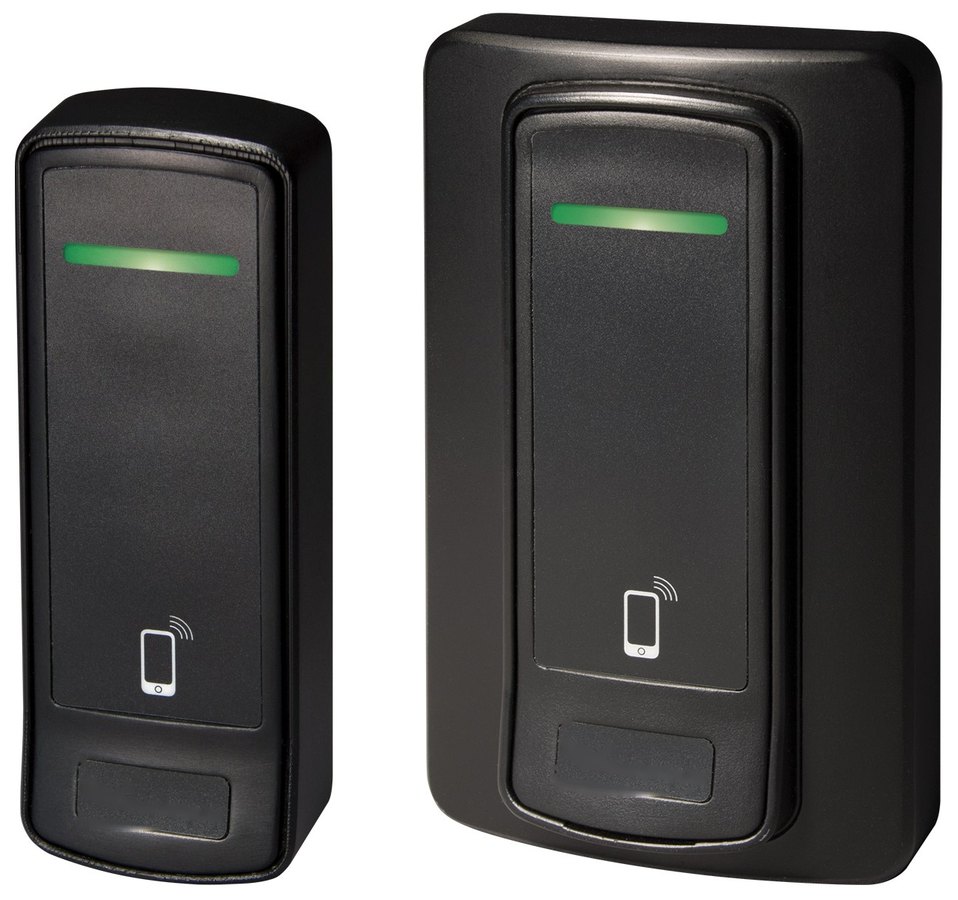

It mounts on a mullion, or on a single-gang box with the included adapter plate. It is sealed to IP67 for indoor or outdoor use and connects to your panel by Wiegand or OSDP.
Request a quote
Phones as credentials
- Tap an iPhone or Android phone with Apple Wallet or Google Wallet
- Or use Bluetooth from up to 15 ft, with the range adjustable at the door
- Hands-free “touchless” activation with mobile app credentials
Smart cards
- MIFARE DESFire EV2/EV3 (optimized), Classic, Plus and UltraLight
- Government PIV, TWIC and CAC cards
- Reads the card serial number or secure sector data
Built for the door
- IP67, epoxy-potted, weather and tamper resistant
- Wiegand, ABA or bi-directional OSDP
- UL 294 listed; limited lifetime warranty
Mobile credential
CMC-2 mobile credential

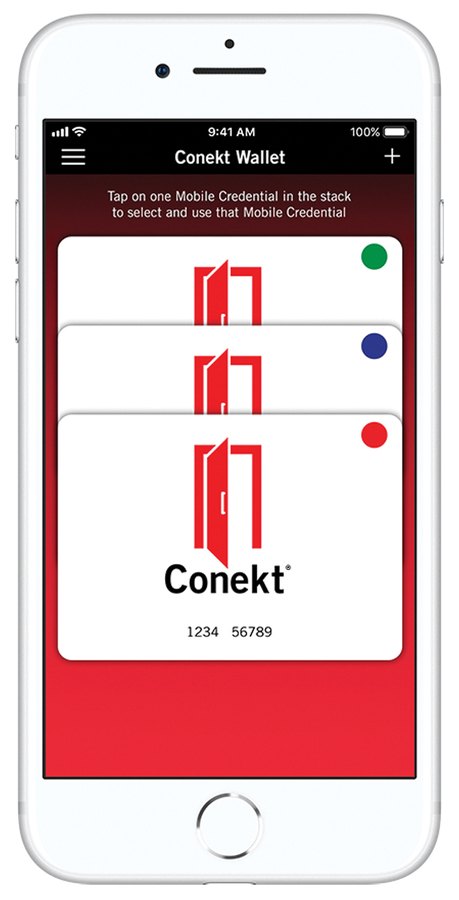

The CMC-2 turns a smartphone into an access credential that works like a card. It’s delivered to the phone’s app and read by the CSR-35L over Bluetooth from up to 15 feet.
- Works on iPhone and Android phones with Bluetooth Low Energy 4.2 or newer
- One-time registration with no personal information required
- One app can hold several credentials
- AES encryption, protected by the phone’s own security settings
- Ordered pre-programmed to your format and number sequence
- Technology
- Bluetooth Low Energy, 2.4 GHz
- Read range
- Up to 15 ft (4.6 m) at 12 VDC; varies with phone, case and installation
- Formats
- 26-bit and custom Wiegand, ABA Track II, serial data, bi-directional OSDP
- Phones
- Current and previous official iOS and Android releases
- Readers
- CSR-35L and other mobile-ready readers
CSR-35L specifications
- Reads
- Contactless smart cards (13.56 MHz), NFC and Bluetooth Low Energy (2.4 GHz) mobile credentials
- Smart cards
- MIFARE Classic 1k/4k, DESFire EV2/EV3, UltraLight, Plus; ISO 14443; iCLASS-type ISO 15693; PIV, TWIC and CAC (card serial number and sector data)
- Mobile
- Apple Wallet (iOS 15+), Google Wallet (Android 8.0+), Conekt mobile app; phones need BLE 4.2 or newer
- Read range
- Cards and NFC: up to 2″ (51 mm) · Bluetooth: up to 15 ft (4.6 m), adjustable
- Outputs
- Wiegand (26-bit and custom formats), ABA Track II clock-and-data, or bi-directional OSDP
- Size
- Reader: 1.7″ W × 4.7″ H × 1.2″ D (mullion) · With the included adapter plate: 3″ W × 5.1″ H × 1.2″ D
- Mounting
- Mullion, metal door and window frames or flat surfaces; the included adapter plate fits a single-gang box
- Power
- 8–14 VDC; 60 mA typical, 250 mA peak at 12 VDC (linear supply recommended)
- Environment
- IP67, indoor or outdoor; −35 °C to +60 °C (−31 °F to 140 °F); 0–90% RH; epoxy-potted electronics
- Indicators
- Red, green and amber LED; beeper
- Listings
- UL 294, ULC 60839-11-1, FCC, ICC, CE
- Warranty
- Limited lifetime
Ordering
| Part number | Output |
|---|---|
| CSR-35L | Wiegand / ABA |
| CSR-35L-OSDP | Bi-directional OSDP |
Mobile range varies with the phone, its case, the installation and reader settings. Mobile and NFC credentials can be ordered programmed to your format and number range.
