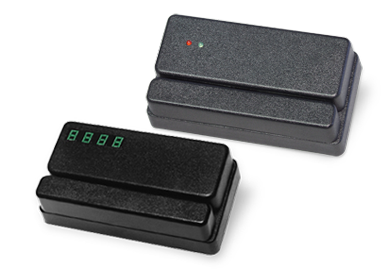

Smart Series JX
Barcode, mag-stripe and prox readers
Bring the cards people already carry into a modern access control system. JX readers read barcode, magnetic stripe and proximity cards in any combination, in one reader.
Each reader is built to order for the application, with a 2–3 week lead time. Built-in data conversion masks out the parts of the card data you don't need, so the panel or PC sees only what it should.
Spec a reader
Models
| Model | Reads | Datasheet |
|---|---|---|
| Smart Slot JX | Barcode (1D symbologies: licenses, student and employee IDs) | |
| Smart Mag JX | Magnetic stripe: Track 2, Tracks 1 & 2, or Tracks 2 & 3 | |
| Magbar JX | Barcode and magnetic stripe in the same slot | |
| Smart Prox JX | Proximity, plus optional barcode, mag stripe or smart card (including iClass) | On request |
Standard features
- Programmable decoding and data masking
- Visible or infrared barcode optics
- 5 VDC or 12 VDC operation
- Good-read beep
- Operates from −40 °C to +85 °C
- RS422, RS485 and TCP/IP versions are networkable
Output interfaces
- Wiegand (numeric and alphanumeric)
- RS232, RS232 wedge, PC wedge
- TTL ASCII and inverted TTL ASCII
- Magstripe (ABA) and wand emulation
- RS422 / RS485
- VT320, DTMF
Options
- Weatherproofing
- 5, 8–15 or 15–30 VDC supply
- Low or high barcode resolution
- 8-character display or 4-digit clock
- Indicator LEDs and an internal relay to drive a lock directly
- Door position switch inputs
- Side or rear wiring; #6 or 3 mm mounting; double-gang plate
Typical uses: access control, time and attendance, food service access, retail and membership cards.
